GIVI MISURE
發(fā)表時(shí)間：2018-06-26 次數(shù)：902 作者：

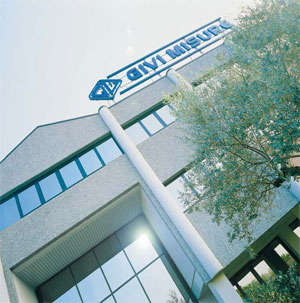

About GIVI MISUREFor over 30 years GIVI MISURE has been designing and producing, in the Nova Milanese production site, high-performance optical scales, rotary encoders, digital readouts, position controllers and magnetic systems, exporting them worldwide. Constant investment in research and development allows GIVI MISURE to offer high-quality products at particularly favourable prices.

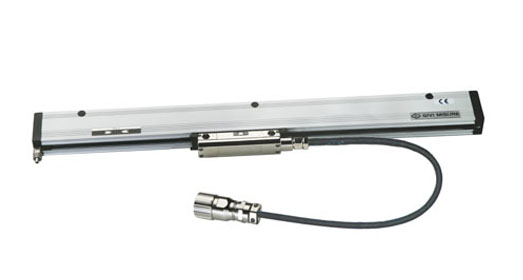

PRODUCTS | FAMILIESOptical ScalesHigh precision of gratings whose linear thermal expansion is suitable for the application required. Measuring lengths up to 30 m, accuracy grade up to ± 1 μm and resolutions up to 0.1 μm. Certificate of metrological inspection supplied with each scale.Optical scales are manufactured in compliance with strict quality standards and they are produced in seven different models. The product documentation, which can be supplied on request, underlines the high quality and reliability of products

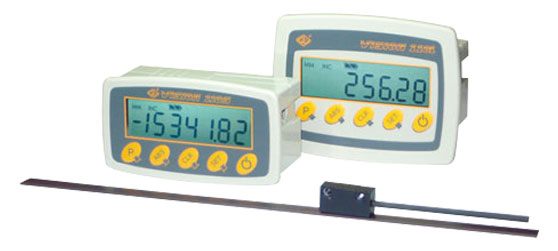

MAGNETIC SYSTEMSMagnetic systems for no-contact measurements of accurate linear displacements. Small-sized sensors. Stainless steel support for magnetic band equipped with bi-adhesive tape for an easy and economical fixing.Max. frequency 300 kHz and resolution range up to 0.1 μm. Traversing speed up to 12 m/s and max. shock resistance 1,000 m/s2 (11 ms). IP 67 protection DIN 40050/IEC 529 as standard.

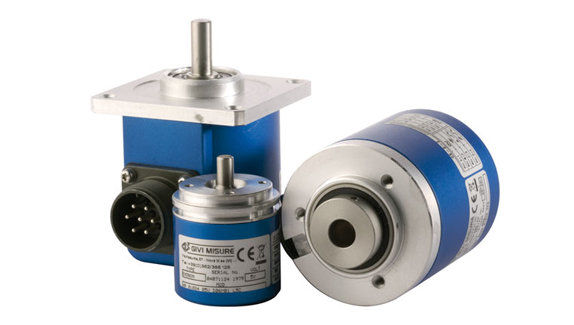

ROTARY ENCODERSA robust and compact structure combines versatility in use to such a wide range of features that any application need can be met with satisfactory solutions.Metal case for an effective protection against electromagnetic interference. Wide range of pulses/rev. up to 64,000 ppr. Max. frequency 300 kHz and IP 67 protection DIN 40050/IEC 529 on request.

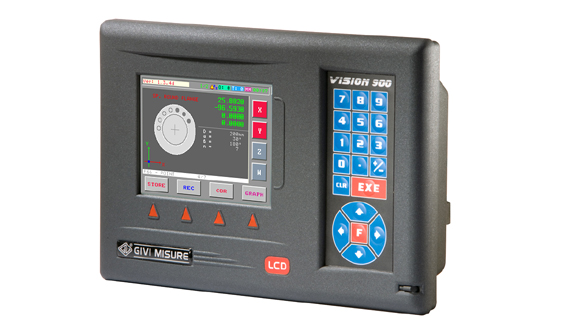

DIGITAL READOUTSA very powerful microcontroller processes the information transmitted by the transducers. Having at disposal a digital readout which combines such advanced features with ease of use means to considerably increase the productivity of the machine tool.VISION digital readouts are manufactured with the most advanced electronic technology available: low-voltage components (3.3 Volts), minimal consumption and high degree of integration allowing multiple and versatile performances.

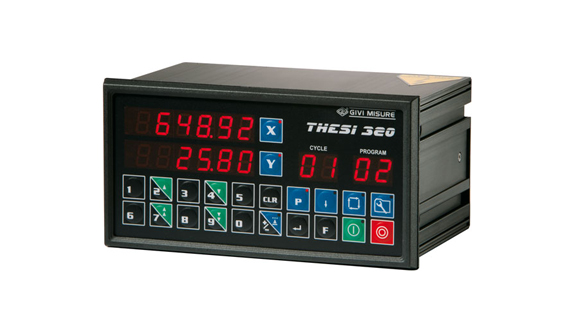

POSITION CONTROLLERSTHESI position controllers, in the 1 or 2 axis versions, use a 16-bit microcontroller, 256K FLASH and 8K RAM memory in single-chip mode. High input speed, wide range of specific functions and ease of use are the main characteristics of THESI position controllers, whose primary application field is in sheet-metal cutting and bending machines.The axis position control can be carried out in manual, semi-automatic or automatic mode with a selectable resolution from 1 to 200 microns. The metal box, combined with the optoisolated inputs, make this instrument protected against electromagnetic interferences.
